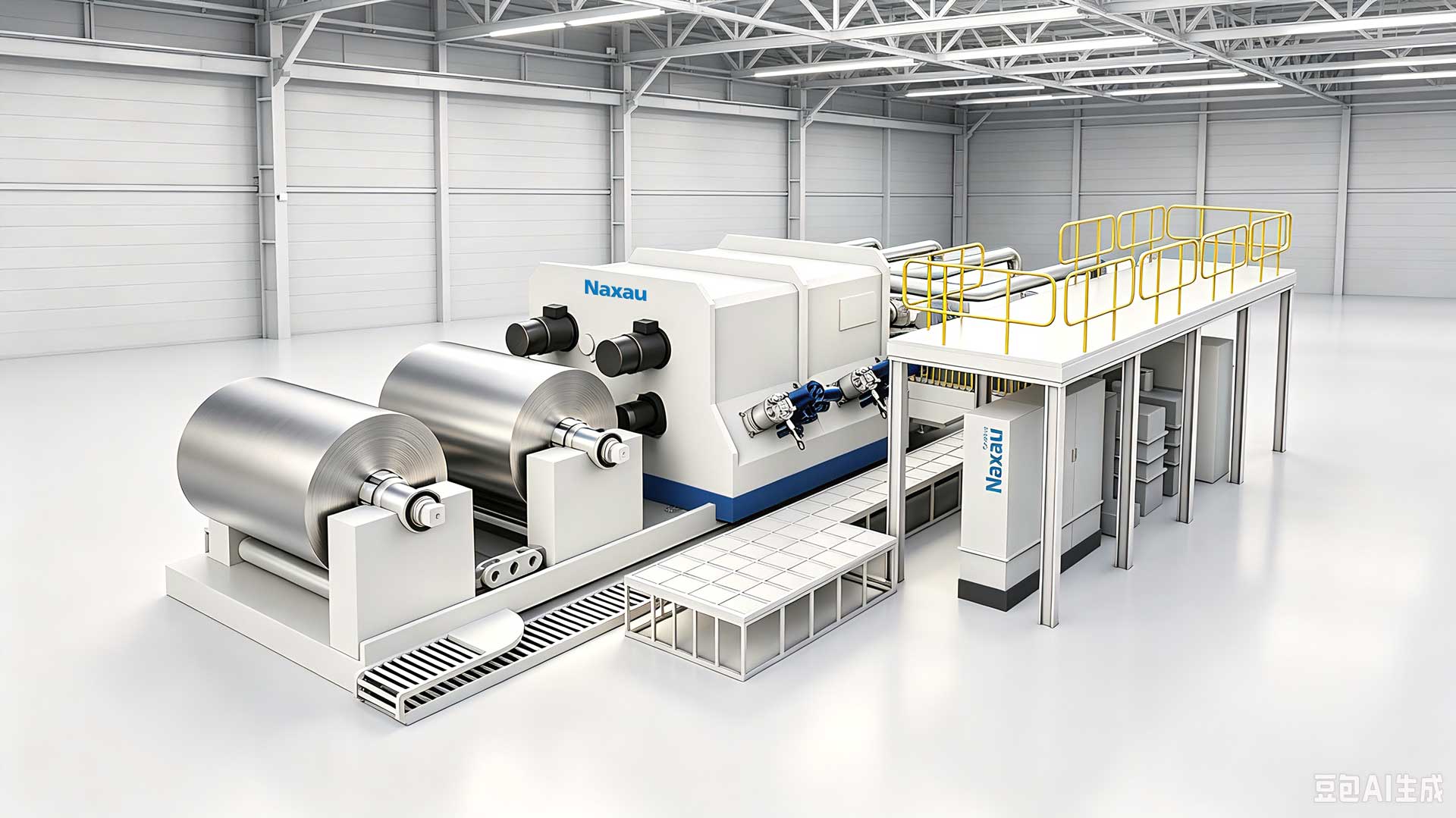

Model R-DT1350

Model R-DT1350 is a vacuum system for large-scale production of composite current collectorsRoll-to-Roll CoatingEquipment，integrating high-power induction evaporation sources、drum cooling roller systems andUltra-Low-Tension Web Handlingmechanisms，enabling reliable deposition of high-Conductivityaluminum layers（Al）on both sides in a single pass。

With maximum coating length up to 20,000 meters per run, designed for fast, long-duration continuous production, the technology solution originates from the Naxau JVAD high-rate coating platform, providing a one-stop mass production platform for double-sided metallization of flexible substrates.

Multi-pass coating process completely eliminates pinhole defects, improving nail penetration rate by 30%, providing high-performance composite current collectors (PET/Al) for power batteries and energy storage batteries.

Batteries
Product Datasheet

Introduction

R-DT1350 Designed specifically forComposite Current Collector Al Coatingapplications，supporting 650/1350/1700mm multiplewidth，inductionevaporationpower 100-500kW，web speed 10-100m/min。

Ultra-Low-Tension Web Handlingalgorithm compatible with PET 4-6μm ultra-thin substrates，large-capacity crucible quick-change structuresupporting 72 hours continuous production，multi-pass coating eliminates pinholes，nail penetration rateImproved 30%，for powerBatteriesandenergy storageBatteriesprovidingHigh-Performancecomposite current collectors。

Core Advantages

Double-Sided Simultaneous Evaporation

Completes double-sided aluminum deposition on base film in one pass, with excellent uniformity and doubled productivity.

Ultra-Low-Tension Web Handling

Ultra-low-tension active web feeding algorithm, compatible with 4-6μm ultra-thin PET substrates, preventing wrinkles and web breaks.

High Productivity, Low Maintenance

Up to 20,000 meters per run, large-capacity crucible quick-change, supporting 72+ hours continuous production.

Correlation Applications

Composite Current Collector Al Coating（PET/Al）

Learn more

high-barrier packaging film

Learn more

capacitor film

Learn more

Correlation Technology

inductionevaporationTechnology

Learn more

JVAD high-rate coatingTechnology

Learn more

Ultra-Low-Tension Web HandlingTechnology

Learn more

Correlation Component

largepowerinductionevaporationsources

Learn more

drum cooling roller

Learn more

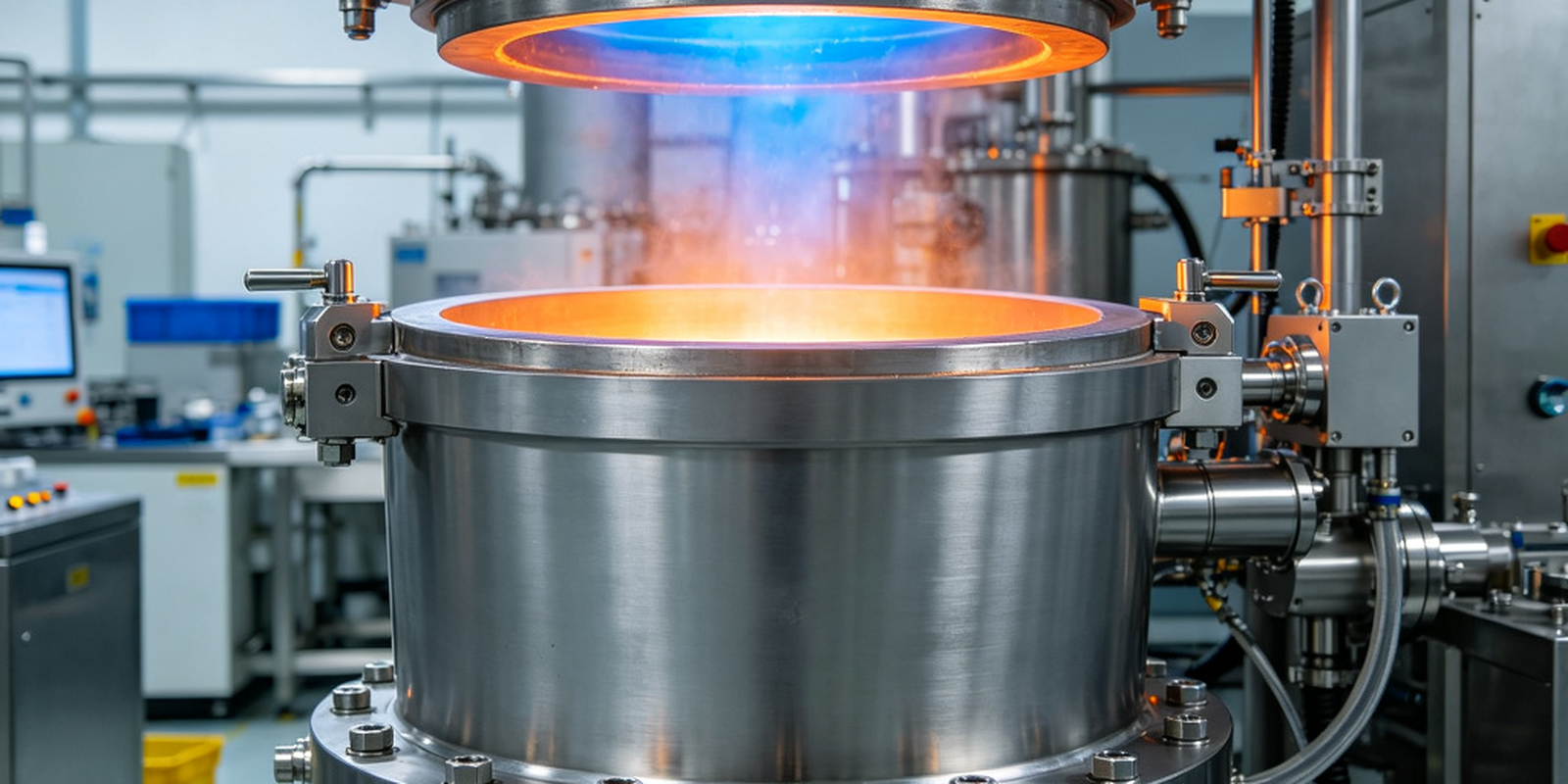

largecapacity crucible
